Sep 9, 2016

Yamaha Crumbler

Yamaha vx950 / Bolt Crumbler concept
Yamaha Crumbler concept

I'm toying with the idea of making a sort of Cruiser / Scrambler mix -> a Crumbler using mostly stock Yamaha parts. The pic is missing the SCR950 bash plate. I'm also thinking about doing double footpegs. Forwards for normal riding and normal ones (without brake or gear levers) for stand up riding. My 5.5" risers would allow for a relatively nice stand up position. It would seem that this might be doable with minimum effort as the normal foot peg hanger holes are now "free" when the forwards are mounted just enough forward.


Aug 21, 2016

Yamaha Bolt rim tapes / texts

Yamaha Bolt rim tape / text
Yamaha Bolt rim tape / text
I wanted to try to give the bike a sportier look with some rim decals. I wasn't sure how it would work out, so I cut the letters by hand before spending money and maybe ordering pre cut vinyl decals. I think it came out pretty good for DIY job. I'll probably do them again during the winter when I'll be taking the wheels off anyway. The design also needs some tweaking.

The rear wheel with decals installed

Yamaha Bolt / XV950 with rim lettering decals / tapes
Yamaha Bolt / XV950 with rim lettering decals / tapes

A SHORT HOW-TO


1. Take some measurements of the rims
You need to know how tall the letters can be and how much space they will take. Note that the rim size measurements are not 100% accurate, but close enough.

2. Decide on a font and font size
If you will be cutting by hand, choose something with lots of straight lines. If the font is very wide you may run into trouble as the rims have curvature in many directions. The smaller the font, the more tears you will shed when cutting.

*2B. (optional) Design your rims using Illustrator or similar.
Use real world measurements to get an idea how it will look.

3. Clean the rims

4. Print the font outlines on self adhesive vinyl
You can buy sheets of this stuff and you can use it in a regular laser printer. DO NOT put just any sticker sheets on your printer! Melting inappropriate self adhesive sheets inside your workplace printer is not something you want to experience.

5. Cut the letters out using scissors and a scalpel type knife
This part will have you swearing or in tears or both.

6. Start putting the letters on
Print out a picture how the letters should space out. Helps to get you started. Italic or slanted letters are a bit more difficult to get right.

The lettering will of course bend to the contours of the rims and not be flat like in the picture above
Letters with thin outlines


Aug 13, 2016

Riser stiffening washers

Picture courtesy of SS Custom Cycle

Just a heads up. It seems that SS custom cycle has these for sale now so you don't need to have ones made when installing taller bars or risers. SS Custom Cycle website

If you don't know what these are for click & read below

Jul 27, 2016

Bikes ridden


I listed all the bikes I've ridden over the years.  I gave them stars according to how I liked them so the stars are clearly my "feel based" opinion (or recollection) and not so much a statement of how good or bad a bike is. Whats the point? There is none.

Jul 20, 2016

Lofoten ride

Lofoten motorcycle trip

Made it back in one piece. A good ride, but the weather sucked a bit.

Some notes from the trip:


- the backrest was just spectacular on those long boring stretches
- tank size was not a problem at any point
- waterproof luggage proved to be very necessary this time
- too much stuff came along (again)
- need better riding gear, having separate rain gear sucks
- invest in really really good "come hell or high water" gloves (had several crappy ones with me)
- stock suspension is absolutely fine
- phone still sucks as GPS navigator
- have your own straps for any future train rides

Jul 6, 2016

On my way



I will be on my way up north and towards the Lofoten Islands tomorrow evening. Updating the blog from the road with the phone is too much of a hassle, but if you want to tag along you can see updates from the road on my Instagram account https://www.instagram.com/web_biker/

Below is the plan for 4 days of riding.


Jun 27, 2016

Luggage testing for the trip

Wolfman bags on a cruiser no less
Did a test mounting of my gear for the upcoming trip. If I leave one of the Wolfman bags at 50% I can get a working back rest from the bags. Rain gear is strapped separately to the sissy fro fast deployment.


Jun 21, 2016

2017 Yamaha Bolt and Bolt R-spec

2017 Yamaha Bolt

Yamaha has published 2017 Bolts. No dramatic changes. Only the flangeless tank and spoked wheels are different from 2014-2016 Bolts.
2017 Yamaha Bolt R-spec

Yamaha Bolt product page
Yamaha Bolt R-spec product page

Jun 11, 2016

Yamaha SCR 950 Scrambler and new accessories


Yamaha has officially introduced the rumored Scrambler version of the Bolt. The obvious differences to the standard Bolt are:

- upswept exhaust (the design is otherwise pretty much the same)
- scrambler bars
- spoked wheels
- new seat and rear sub frame
- scrambler style rear fender
- flangeless tank

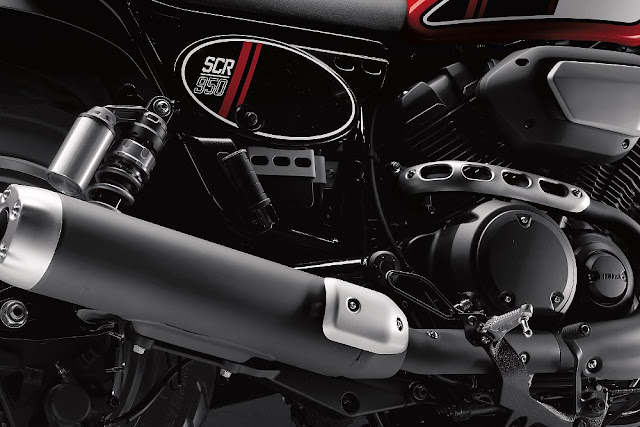

Yamaha SCR 950 exhaust

Yamaha SCR 950 seat

Yamaha SCR 950 tank
For those owning and keeping the standard Bolt or the R-Spec the most interesting question is, what this brings to the accessories department and what parts can be perhaps utilized on our bikes.


The skid plate should work on the standard Bolt and maybe even the upswept pipes could work as a simple bolt on customization.

SCR950 Aluminum Skid Plate BL3-F14B0-V0-00
SCR950 Aluminum Skid Plate (BL3-F14B0-V0-00)


Another interesting addition to the accessories is the  SCR950 Micro Cowl (BL3-F83M0-V0-00)

SCR950 Micro Cowl (BL3-F83M0-V0-00)


It will also be interesting to see how they have done the rear sub frame. It's hard to tell from the photos whats going on there.

May 17, 2016

Brake light issue


It seems that after installing the forward controls my brake light is not working correctly. When installing the forwards, the rear brake lever was positioned more upwards than it was with the standard setup. Not adjusting the lever angle was not really an option because of the ankle extension needed to press the lever would have been too much. As a result the spring pressure is not enough to fully restore the lever to the upright position. This in turn means that the brake light stays on from time to time. It's a matter of few millimeters and while I could sort of solve the issue by adjusting the brake lever light switch I think I should rather address the real issue of not enough spring tension.

As a solution, I've designed an aluminum spacer that my friend will hopefully soon machine for me. I'll keep you posted how it works out.

Yamaha Bolt rear brake lever spirng

Below, you can see how "soft" the spring is.




[UPDATE May 17th]

The plans for the "brake spring tightener"
Well, my friends CNC machine is down, but he tinkered the part for me by hand. I will get the final part at some point but in the mean while the hand made part works perfectly!
Brake spring tensioner in place



May 12, 2016

Yamaha Bolt tank decal - final


I finally came up with a design I'm reasonably happy with. The above pic is just a photoshop as I haven't actually gotten the decals from print yet.

Yamaha Bolt custom tank decal
This is the design I went with
The PDF / vector file for the decal can be downloaded here: https://www.dropbox.com/s/brqu07nvbn2krpo/yamaha_bolt_tank_decal.pdf?dl=0
(in case you want to have some made or modify the design)

EDIT [ May 17th]

Got the decals from print. I hope I don't **** up trying to put them on. Ordered one spare pair just in case...

Yamaha Bolt tank stickers

Decal installed
Added a Faster Sons decal too


May 4, 2016

Yamaha Bolt bike comparison - did I buy the right bike by the numbers

Yamaha Bolt and Harley-Davidson Sportster 883R rode back to back
By now it's clear as day, that buying a bike solely by the numbers is just plain wrong. There's so much more to a motorcycle than just the spec sheet. Most of the stuff is hard to put in words and are based on a "feel".  Only riding different bikes, will tell you what fits you and what will not. That said, it's interesting to look at what this Bobber/small cruiser/"Sportster" category has to offer, when you look at the numbers. Sportster is the bike all others will be measured against and while Harley deserves some of the crap they get, the fact is that the Sportster is somewhat of an icon and a legend and has an aura that other manufacturers can only dream of. The Bolt is Sportster copy, no denying that, but a relatively tasty one.

Price

Yamaha Bolt pricing comparison.

Testing the Vulcan S in 2015

Price is usually the biggest deciding factor when getting a bike so let's look at that first.* The Indian Scout and H-D 48 are in a class of their own Guzzi being a close third. Japanese bikes are clearly cheaper and the soon to be replaced Speedmaster can be bought for down right cheap. The price difference of a Bolt and a Scout is so big that many people are probably not seeing them as competitors. Bolt's MSRP is the second cheapest topped only by the very affordable Kawasaki, so the Bolt does well in the pricing category. What you actually have to pay for each bike in real life, is another matter entirely.

* Prices are based on 2016 US MSRP prices

Cubic inches


Not an important number in my opinion as you can get a big engine that produces little joy and vice versa. The Scout and 48 are naturally kings and only the Kawi is left significantly behind. If this is important to you, the Bolt does ok, being 4th biggest engine in the comparison.

Wet weight


Weight is always a very important for a motorcycle. Except when you ride a cruiser. Then your machine is unnecessarily overweight to begin with compared to everything else. The parallel twin Kawi and Guzzi do "well" here and the glorious Indian is the fattest. These being cruisers, small differences will not be noticeable in real life. Bolt comes in 3rd behind the Guzzi and Kawi.




Horsepower

Yamaha Bolt horsepower comparison. Not in last place, but not far either...
Testing the 2015 Iron

Here the Indian just blows everyone else away. No contest. Harley has given up even giving out any HP numbers, but I think it's safe to assume that nothing much has changed from few years back when they did give out the HP data. The Bolt sorta hangs in there, but only really tops the basic Iron 883. Guzzi is also a slight let down as the looks and Italian heritage makes one expect more.

Max torque

Yamaha Bolt torque comparison. Indian wins again.
Testing the 72. (not stock)
When you get a cruiser, you expect torque. One of the reasons that the good old V-twin is still alive. The Bolt does better here than it does on the HP category. The Scout is a winner here too, but now the 48 gets pretty close. Naturally the bigger engines rule.

ABS


Whether you want it or not is a matter of personal taste, but not having it as an option is not good. Why Yamaha for example is not offering as an option in the US is a mystery as Euro Bolts do have ABS.


CONCLUSION


No first places in any category for the Bolt, but no last places either. If you don't count the shared last place in the ABS category. Overall the Bolt is "middle of the pack" bike that doesn't excel in anything. Choosing the Bolt over other plainly looking at these numbers is not justified.

If you play around with the numbers a bit and place more emphasis on certain numbers the Bolt may climb up a bit. Making a chart where the best in category gets 10 points and others are scaled accordingly you get something like the one below. With a strong emphasis on price, the Vulcan S seems to give the best bang for buck followed by the Scout 60. This sort of weighted points chart makes the Guzzi the worst choice of all.


All that said, these numbers mean very little in the real world and many many things are left out.

THE ERGO NUMBERS

To be continued....


Apr 22, 2016

2015 black Yamaha Bolt / XV950
Clear & cold

Another zero degree morning. Spring just refuses to start.

Apr 8, 2016

Blacked out heat shields

Blacked out heat shields on the Bolt
Used heat resistant rattle can paint.

Apr 2, 2016

First ride of the year!



The flipped mirrors work! The custom made riser bushing also seem to be a success. Some vibrations come through, but nothing that will likely bother me. The Puig screen works as intended. not perfect protection, but a good compromise.

Mar 29, 2016

Say no to chrome



Continued with the pointless tinkering and blacked out some chrome bits with vinyl wrap.

Mar 28, 2016

Yamaha Bolt modded airbox

Yamaha Bolt modified intake
 First, there is absolutely no point in doing this. In theory there is more airflow to the airbox, but I don't think it's going to make any kind of difference in real life. I just had to tinker with something to pass the time while I wait for the spring to arrive.

Ad for the mod, I drilled 3 10 mm holes and added rubber grommets to make it look a little nicer. Word of warning here: The plastic material will chip if you drill too casually with a large (10 mm) drill bit. Don't ask how I know...


Yamaha Bolt airbox modified



Mar 25, 2016

Yamaha Bolt aftermarket intake / air cleaner options



The way I see it there are three reasons to go for aftermarket intake for the Bolt.

1. Performance
Unlike many mods, a free flowing intake will likely give you a few more horses. Not enough to justify the cost IMO, but still.

2. Leg room
The Bolt stock airbox is rather large and replacing it with a more compact one will likely improve comfort on the bike.

3. Looks
The stock box isn't the prettiest part of the bike. Installing an aftermarket one will make a big impact on the looks if that is important to you.


The available options, that I have come across:


K&N RK-3940

K&N RK-3940


TWO BROTHERS Comp-V High-Flow Intake System with V-Stack

Two Brothers Comp-V


ROLAND SANDS SLANTED INTAKE

RSD Carbon slant

Seen on Yamaha promo shots of the C-Spec. RSD website doesn't actually list this intake for the bolt though. It's available for a H-D Sporster.

MSRP: $ 470
More: http://www.rolandsands.com/product/308/rsd-slant-carbon-fiber-intake-kit/carbon-ops


COBRA POWRFLO INTAKE FOR YAMAHA BOLT

Cobra Powrflo

MSRP: $330


COBRA ROUND INTAKES


Cobra round



D&D RACING TWINTUNE

D&D Twintune

MSRP: $299

LOW & MEAN DUAL BARREL

Low & Mean Dual Barrel

MSRP: $200


LOW & MEAN SPIKE AIR CLEANER

Low & Mean spike


VANCE & HINES VO2 NAKED AIR INTAKE KIT

Vance & Hines VO2

MSRP: $160
More: http://products.vanceandhines.com/store/yamaha/71023/

SSCC AIRSTREAM

SSCC Airstream


SSCC "SKULL"

SSCC Skull

MSRP: $???
More: not yet available at SSCC website

SSCC "SPIKE"

SSCC Spike

MSRP: $339
More: not yet available at SSCC website

SSCC KING

SSCC King

MSRP: $???
More: not yet available at SSCC website

SSCC HARDTIMES
SSCC Hardtimes

SSCC BILLY BOB

SSCC  Billy Bob


KURYAKYN HYPERCHARGER

Kuryakyn Hypercharger


KURYAKYN ALLEY CAT

Kuryakyn Alley Cat
